Overview

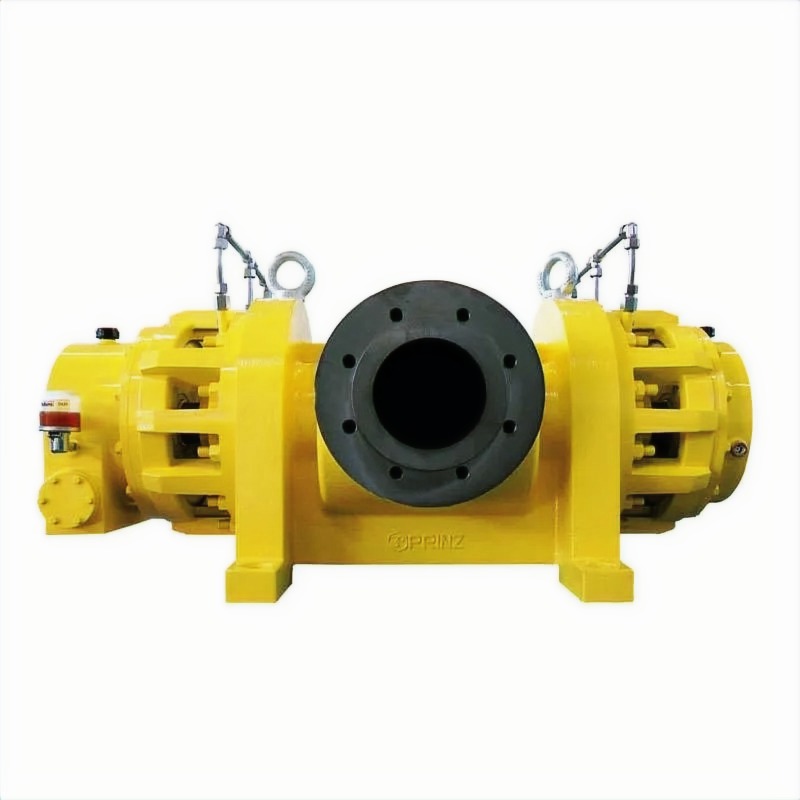

3P Prinz (PERA-PRINZ) positive-displacement pumps use two pairs of non-contact screws to provide a constant, pulsation-free flow, with high suction capability and low NPSH requirements. They are available in horizontal or vertical installation, side-top or side-side configuration, and baseplate-mounted in non-API or API type, with a wide range of drive units including close-coupled compact versions. The contactless twin-screw principle with timing gears is a much longer-life solution than twin screws with rotors in contact, and the range can be produced in materials from cast iron up to special alloys such as Inconel, Hastelloy, Alloy 20 and Duplex / Super Duplex, selected to suit the fluid, temperature and environment.
Type
twin-screw PD, contactless with timing gears
Flow
constant, pulsation-free
Config
horizontal/vertical, API or non-API
Materials
cast iron to Inconel/Hastelloy/Alloy 20/Duplex
Contactless twin screws with timing gears (long life)
Pulsation-free, high suction, low NPSH
Horizontal or vertical, API or non-API baseplate
Close-coupled compact versions
Materials cast iron to Inconel/Hastelloy/Alloy 20/Duplex/Super Duplex
Key advantages
Performance
Applications
Sydex provides and adapts a wide range of products to meet your requirements according to your application, flow rate and pressure:
