Vertical barrel and drum progressing cavity pumps
- BE Range

Through its vertical configuration, the BE range progressing cavity pump can be used as barrel and drum emptying pumps. It is also ideal for high viscosity and shear sensitive fluids.



The BE range PCP are suitable for numerous applications within the oil and gas and chemical industries for which they can be used as laboratory pumps for the dosing and transferring of corrosive liquids. Through the stainless steel and sanitary versions, the E barrel and drum pump can also be provided for applications involving food and beverages transfer.



The pumps can be directly mounted to the standard industrial barrel, powered by a single or 3 phase motor and are  supplied complete with a suitable lifting handle for quick and easy insertion. ATEX versions are also available for use in hazardous areas.

E barrel vertical range advantages

  • Versatile configuration

    • Various outlet port options including quick release & Hygienic couplings, BSP, Din and ANSI flanges


  • Ideal for high viscosity and shear sensitive fluids

    • Stable pump, low pulsation


  • Barrel and drum emptying

    • Self-supporting and low level multi point entry port for efficient emptying with little wastage

    • High self-priming rate


  • Cost effective solution

    • Precision rotor & a durable stator for long service and consistent performance


  • Easy and quick maintenance​

SYDEX BARREL AND DRUM PUMP DRAWING

Flexible high torque drive shaft

Lifting handle

Standard international

motor mounting

for ISO & NEMA motors

Single mechanical seal

Outlet port

Rotor & stator

Self-supporting & low level

multi point entry port

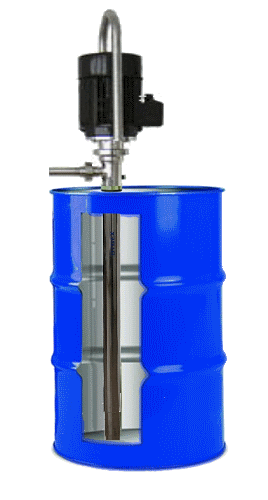

Standard 45 gallon drum pump

E barrel vertical range performances



  • Flowrate:
    from 0.1 m3/h to 5 m3/h [from 0.44 to 22 USGPM]



  • Pressure:
    up to 12 bar [174 psi]



  • Range:
    10 models
